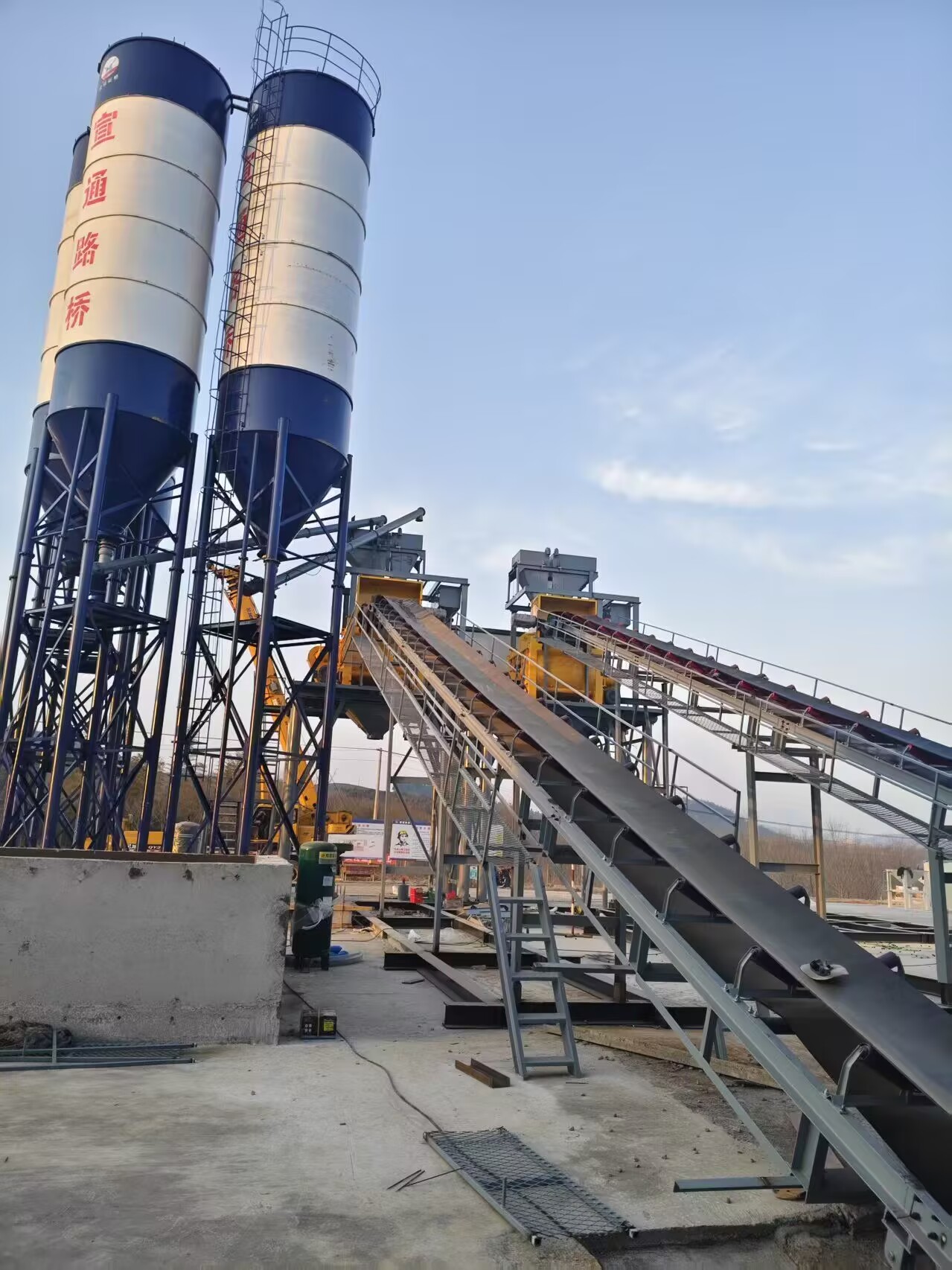

How to Dismantle a Concrete Batching Plant: A Step-by-Step Guide

1. Pre-Dismantling Site Assessment

Before any tools touch the plant, conduct a thorough assessment:

• Structural review: Identify bolted vs welded connections. Bolted plants are significantly faster to dismantle
• Electrical schematics: Gather all electrical drawings. Label every cable and connection before disconnect
• Component condition: Note any rusted bolts, damaged structures, or worn components that may need replacement
• Site access: Confirm crane and truck access. Measure turning radii for container trucks
• Safety hazards: Identify electrical, fall, and heavy lifting hazards. Plan mitigation measures

2. Safety Precautions

Dismantling a concrete plant involves working at height, heavy lifting, electrical hazards, and structural instability risks. Essential safety measures include:

• Full PPE for all team members (hard hat, safety harness, steel-toe boots, gloves, eye protection)
• Lock-out Tag-out (LOTO) procedures for all electrical and pneumatic systems
• Exclusion zone around the plant during lifting operations
• Fall protection systems for work above 2 meters
• Fire extinguishers accessible at all times
• First aid kit and emergency communication plan

3. Tool & Equipment Preparation

Standard equipment required for dismantling a mid-size HZS90 plant:

Phase 1: Utility Isolation (Day 1)

Before any structural work begins, all utilities must be safely isolated:

• Disconnect main power supply and verify zero voltage
• Drain compressed air system and lock out pneumatic supply
• Drain water lines and disconnect water supply
• Empty cement silos and aggregate bins (this should be planned before the dismantling team arrives)
• Drain and dispose of any hydraulic fluids, oils, or coolants according to environmental regulations

Phase 2: Electrical Disconnection (Days 1-2)

Electrical systems are dismantled first because they connect everything and are most vulnerable to damage:

• Document all cable runs with photos and labels
• Disconnect PLC control panels and label every wire bundle
• Remove and catalog sensors, limit switches, and VFDs
• Label and remove motors (with couplings intact where possible)
• Package sensitive electronics in antistatic material

Critical: Take before and after photos of every electrical cabinet and connection point. These photos will be invaluable during reinstallation.

Phase 3: Top-Down Structural Dismantling (Days 2-6)

Structural dismantling always proceeds from top to bottom for safety and logical sequence:

• Step 1: Dust collector and roof structure
• Step 2: Cement silo tops, filters, pressure relief valves
• Step 3: Conveyor belt system (disconnect at head and tail pulleys)
• Step 4: Mixer platform and mixing unit (remove mixer pan or drum as one piece if crane capacity allows)
• Step 5: Aggregate bins and weigh hoppers
• Step 6: Main support structure 鈥?bracing, columns, cross-beams
• Step 7: Cement silos (lift with crane, may need multiple lifts for sectional silos)
• Step 8: Base frames, foundations, and ground-level equipment

Labeling protocol: Every structural component gets a unique ID tag. We use a system like: SILO-01-A (Silo 1, Section A), MIX-MAIN-01 (Main mixer unit). The labeling system must cross-reference to the reassembly drawings.

Phase 4: Component Preparation & Packaging (Days 6-8)

Once dismantled, everything needs to be protected for transport:

• Small parts (bolts, brackets, sensors): Sealed plastic bags, then placed in labeled crates
• Medium components (motors, valves, panels): Shrink-wrapped and crated
• Large structures (beams, silos, platforms): Steel-banded or container-loaded directly
• Electronics: Antistatic wrapping, then sealed in waterproof crates with desiccant
• Fragile items: Labeled "FRAGILE" with international handling symbols

All wood packaging (crates, pallets) must comply with ISPM-15 (IPPC) standards for international shipping 鈥?heat-treated and stamped. Non-compliant wood will be destroyed at destination.

Phase 5: Inventory Management & Documentation (Ongoing)

Throughout the dismantling process, maintain a complete digital inventory:

• Photograph every component before removal (in-situ) and after removal (in packaging)
• Record each component in the inventory system with: component ID, description, quantity, condition notes, container assignment
• Create a master inventory spreadsheet cross-referencing to the reinstallation plan
• Note any damaged or worn components requiring replacement

Phase 6: Loading & Containerization (Days 8-10)

The final phase 鈥?everything into containers for transport:

• Plan container loading to maximize space utilization and protect components
• Heavy items at the bottom, lighter items on top
• Fragile and sensitive items in last-loaded/first-unloaded positions
• Create a container manifest for each container (what's inside and where in the container)
• Seal and photograph each loaded container before shipping

Typical container requirement: An HZS90 plant requires approximately 3-5 containers (mix of 20GP, 40HQ, flat-rack for oversized items).
